Offering the best production line of hydraulic elevators, Personal Elevator installs Custom Elevator Inc. residential elevators.

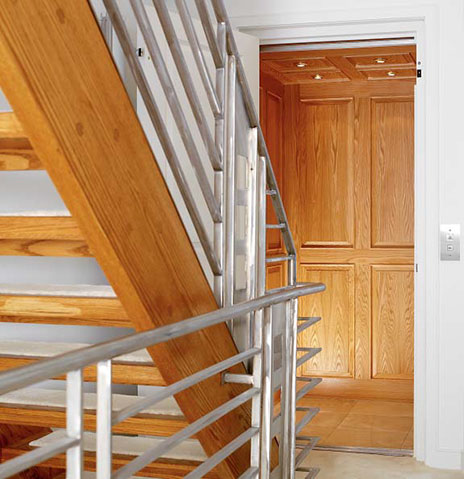

- Premier Cab Series – Top-of-the-line Premier cabs evoke the elegance and sophistication of fine furniture. Adorned with real wood raised panels in your choice of stains, the Premier is dressed to impress the most discriminating homeowners and their guests.

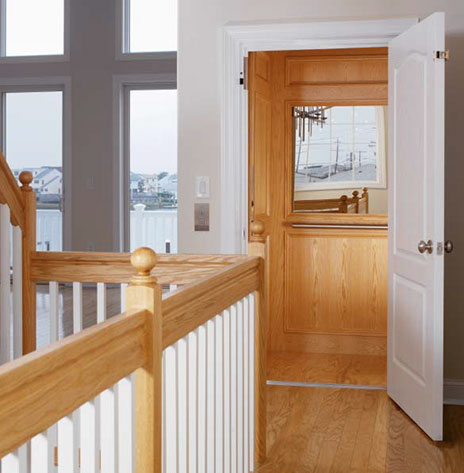

- Signature Cab Series – Versatile and with a wide variety of custom design options for a personalized, one-of-a-kind look. Choose a wood stain or paint, mirror or arch, and many other selections to create your own Signature style.
- Hampton Cab Series – A simple and graceful design, the Hampton cab features clean lines, traditional moldings and a high quality wood finish. Available in various woods and stains, the Hampton harmonizes beautifully with the décor of older homes and new homes alike.

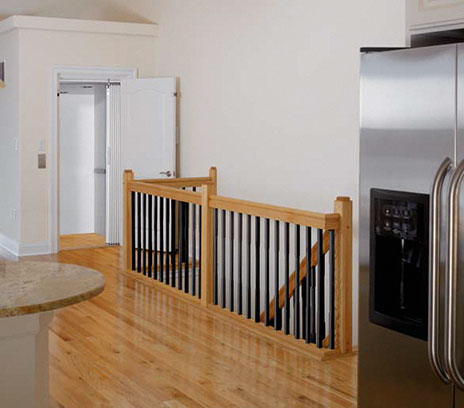

- Classic Cab Series – A perfect balance of form, function and value, the Classic cab is the most affordable Custom Elevator model. With durable, easy-to-clean laminate walls in an extensive array of colors and patterns, the Classic meets the practical needs of multi-unit residences and cost conscious homeowners.
Custom Elevator Residential Elevators
The Custom Elevator choice!
- Mobility/Access to All Levels of a Home Forever
- Efficient Use of Space
- Convenience
- Affordable
- Increases Home Resale Value
- Touch of Luxury
Add the convenience of an elevator to your home and enjoy a more relaxed lifestyle. Many homeowners are now finding a residential elevator is a wise investment for the future and for their homes’ resale value. Whether you live in the cold mountains of Colorado or the warm shores of Florida, Custom Elevator Manufacturing Company has the capability to manufacture an elevator that fits your home.
Custom Elevator’s unique design offers the flexibility to customize the standard system to suit most any conditions making this residential elevator perfect for new construction, or for any existing home remodeling project.
Premier – Cab Options
The Premier Series raised panel cab design is distinctively crafted from natural oak hardwood and veneers available in several stains and solid color lacquer finishes. Other available wood species include cherry, walnut, birch and mahogany. Laminated safety glass rear or side wall insert is optional. A wide variety of ceilings are available.
Wall Panels
1 White
2 Natural Oak
3 Golden Oak
4 Colonial
5 Cherry
6 Cordovan
7 Dark Oak
8 Walnut
Standard Ceiling Choices
C-1
C-4
C-5
C-6
Optional Ceiling Choices
C-3
C-7
C-12
Light Fixtures for the Premier Series
Signature – Cab Options
The Signature Series recessed panel cab design is elegantly crafted from natural oak hard-wood and veneers available in several stains and solid color lacquer finishes. The look of this beautiful cab may be accented with the optional arched top panel or smoked mirror middle panel on the back or side wall. Other avail-able wood species include cherry, walnut, birch and mahogany. Laminated safety glass rear or side wall insert is optional. Several ceiling choices can enhance the beauty of this cab to suit your taste.
Wall Panels
1 White
2 Natural Oak
3 Golden Oak
4 Colonial
5 Cherry
6 Cordovan
7 Dark Oak
8 Walnut
Standard Ceiling Choices
C-1
C-4
C-5
C-6
Optional Ceiling Choices
C-3
C-7
C-8
C-9
C-10
C-11
Light Fixtures for the Premier Series
Hampton – Cab Options
The Hampton Series oak veneer panel cab design is beautifully fitted with solid oak moldings available in several stains and solid color lacquer finishes. Other available wood species include cherry, walnut, birch and mahogany. A wide variety of ceilings are available as shown.
Wall Panels
1 White
2 Natural Oak
3 Golden Oak
4 Colonial
5 Cherry
6 Cordovan
7 Dark Oak
8 Walnut
Standard Ceiling Choices
C-1
C-4
C-5
C-6
Optional Ceiling Choices
C-3
C-7
Light Fixtures for the Premier Series
Classic – Cab Options
The Classic Series cab offers our most durable panel design faced with 1/16” thick plastic laminate available in solid, textured, and woodgrain finishes. Laminated safety glass rear or side wall insert is optional. A variety of ceiling choices are available as shown.
Wall Panels
Standard Ceiling Choices
C-1
Optional Ceiling Choices
C-2
C-3
Elevator Cab Options
White
Natural Oak
Golden Oak
Colonial
Cherry
Cordovan
Dark Oak
Walnut
White
Off-White
Tan
Ceiling Descriptions
Hardware Options
Pushbutton Signal Fixtures
CAR OPERATING PANEL
1 The standard car operating panel includes light up pushbuttons, digital floor position indicator with car direction arrows, emergency stop switch, alarm button, and light override switch with #4 brushed stainless steel faceplate. Options include #4 brushed brass, polished stainless or brass faceplates and keyed “lock-out” feature.
HALL STATIONS
2 The standard hall stations include a light up call button and “car here” indicator light with a #4 brushed stainless steel faceplate. Options include #4 brushed brass, polished stainless steel or brass faceplates and keyed “lock-out” feature.
RECESSED PHONE BOX (OPTIONAL)
3 For a more finished look, a recessed phone box will conceal the in-cab phone. Available finishes to match the car operating panel include brushed or polished stainless steel or brass.
2
3
2
3
Handrail Options
#4 Stainless Steel Rectangular Bar is standard. Others are optional on all series cabs.
Rectangular
Cylindrical
Accordion Doors & Panel Choices
Accordion Doors
Solid panel accordion car doors are essential for the safety and security while the elevator car is traveling. The accordion door folds into the cab pocket leaving a maximum clear cab opening for easy access. Our automatic gate operator option will fully open and close the cab door at each landing. This feature eliminates the problem of not being able to call the elevator to another landing in the event that the manually operated cab door was left in the open position.
Standard Panel Choices
Vinyl Laminates:
(Available with optional (3) acrylic vision panels)Birch
Light Oak
Walnut
Mahogany
Off-White
Tan
Chalk
Rattan
Optional Panel Choices
Natural Hardwood Oak:
(Available with optional (3) acrylic vision panels)White
Natural Oak
Golden Oak
Colonial
Cherry
Cordovan
Dark Oak
Walnut
Panel Connector Choices:
White
Sand
Brown
Clear Aluminum
Anodized Bronze Aluminum
Anodized Gold Aluminum
Visifold Choices
(Transparent acrylic panels)Transparent Bronze Acrylic / Transparent Clear Acrylic
Alumifold Choices
(Clear anodized aluminum panels with color coordinated panel connectors)Solid Panel / Perforated Panel
Roped Hydraulic Standard Features
Overview Of Standard Features
Characteristics
- Up to 950 lb. capacity (750 lb. standard) *
- 40 f.p.m. nominal car speed
- Up to 6 stops with 50’ of floor to floor travel *
- Minimum pit depth of 8” required (10” recommended)
- Minimum overhead clearance of 8’0” required (9’6” recommended)
- Up to 15 square feet interior cab sizes available (12 sq. ft. standard)
Equipment
- 1:2 roped hydraulic drive
- (2) 3/8” diameter hoist cables
- Single stage hydraulic piston and cylinder with pressure balanced self adjusting seal
- Heavy duty cantilevered design car sling with roller guide shoes
- 8 lb. per foot steel tee guide rail system
- 220 volt single phase power supply
- Vibration free submersible pump/motor assembly with 3 or 5 horse-power motor option
- Two speed control valve with (4) solenoids, soft start and stop, and constant down speed regulation
Safety Devices
- Type “A” instantaneous broken rope car safety
- Pipe rupture valve
- Upper and lower terminal limit switches
- Top final limit switch
- Slack cable switch
- Emergency car lighting in cab
- Emergency push/pull stop switch in cab
- Emergency push button alarm in cab
- Automatic car re-leveling device
- Floor selectable battery lowering device
- Emergency manual lowering valve
- Emergency telephone in cab
- Solid panel cab doors with approved safety switch
- Approved electro mechanical hoistway door interlocks
- Rubber impact bumper below elevator car
- UL and/or CSA certified electrical and hydraulic devices
- Manufactured in accordance with ASME A17.1 Safety Code
Controls/Pushbutton Fixtures
- Automatic pushbutton control
- Microprocessor based control system with uninterrupted battery back-up
- Light-up pushbuttons in car and hall
- Digital floor position indicator with car direction arrows in car
- Automatic cab lighting with override switch
- Automatic indicator light time-out feature
- Automatic “Home Park” feature to designated floor
- “Car Here” indicator lights in hall
- Low oil protection timer circuit
Cab Finishes & Accessories
- Classic Series cab available in a wide variety of plastic laminate choices and other options
- Solid panel accordion cab door available in a wide variety of vinyl laminate choices
- 36” x 48” x 80” high clear interior cab size with a variety of cab opening configurations
- Brushed stainless steel handrail on one sidewall
- Brushed stainless steel cab control panel
Options
- Premier, Signature, and Hampton Series cabs available in a wide variety of finishes and other options
- Accordion cab doors in hardwood, custom stain and lacquer finish, aluminum, and clear or bronze acrylic panels
- Recessed telephone cabinet
- Automatic car door operator
- Polished stainless steel, brushed brass, or polished brass pushbutton faceplate and handrail finishes
1:2 Roped Hydraulic
Winding Drum Standard Features
Overview Of Standard Features
Characteristics
- Up to 950 lb. capacity (750 lb. standard) *
- 40 f.p.m. nominal car speed
- Up to 5 stops with 50' of floor to floor travel
- Minimum pit depth of 8” required (10” recommended)
- Minimum overhead clearance of 9'0" required
- Up to 15 square feet interior cab sizes available (12 sq. ft. standard)
Equipment
- Overhead winding drum drive
- (2) 3/8” diameter hoist cables
- Environmentally-friendly, low maintenance, space saving machine room-less technology
- Heavy duty cantilevered design car sling with roller guide shoes
- 8 lb. per foot steel tee guide rail system
- 220 volt single phase power supply
- Three horsepower, 3 phase motor with variable voltage, variable frequency (YVVF) drive technology for soft start, soft stop, and smooth operation
- Quiet operating, armature actuated fail safe brake assembly
Safety Devices
- Type “A” instantaneous broken rope car safety with over-speed governor
- Upper and lower terminal limit switches
- Top final limit switch
- Slack cable switch
- Machine operated final limit switches
- Emergency car lighting in cab
- Emergency push/pull stop switch in cab
- Emergency push button alarm in cab
- Automatic car re-leveling device
- Automatic battery lowering device
- Emergency manual lowering
- Emergency telephone in cab
- Solid panel cab doors with approved safety switch
- Approved electro mechanical hoistway door interlocks
- Rubber impact bumper below elevator car
- UL and/or CSA certified devices
- Exceeds ASME A 17.1 Safety Code Standards for private residence elevators
Controls/Pushbutton Fixtures
- Automatic pushbutton control
- Microprocessor based control system with uninterrupted battery back-up
- Light-up pushbuttons in car and hall
- Digital floor position indicator with car direction arrows in car
- Automatic cab lighting with override switch
- Automatic indicator light time-out feature
- Automatic “Home Park” feature to designated floor
- “Car Here” indicator lights in hall
Cab Finishes & Accessories
- Classic Series cab available in a wide variety of plastic laminate choices and other options
- Solid panel accordion cab door available in a wide variety of vinyl laminate choices
- 36” x 48” x 80” high clear interior cab size with a variety of cab opening configurations
- Brushed stainless steel handrail on one sidewall
- Brushed stainless steel cab control panel
Options
- Premier, Signature, and Hampton Series cabs available in a wide variety of finishes and other options
- Accordion cab doors in hardwood, custom stain and lacquer finish, aluminum, and clear or bronze acrylic panels
- Recessed telephone cabinet
- Automatic car door operator
- Polished stainless steel, brushed brass, or polished brass pushbutton faceplate and handrail finishes
Winding Drum
